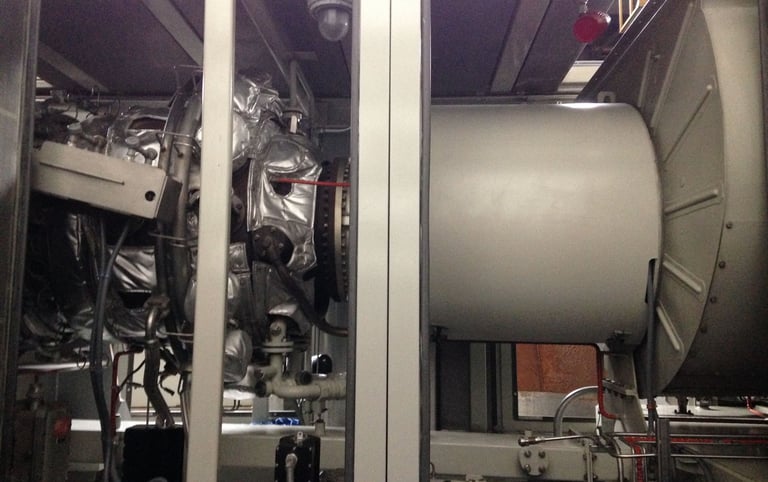

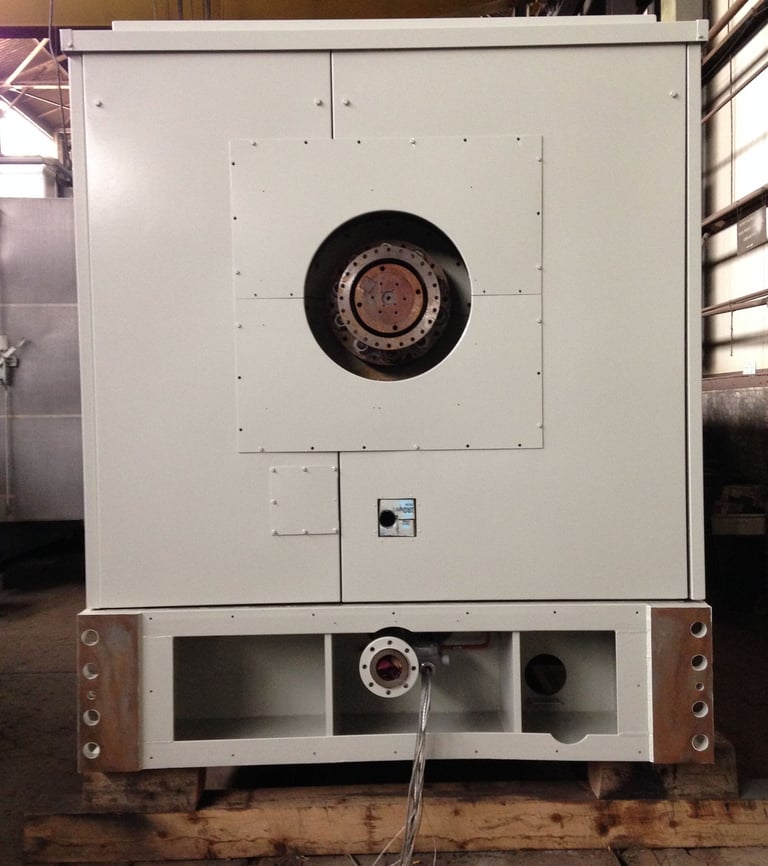

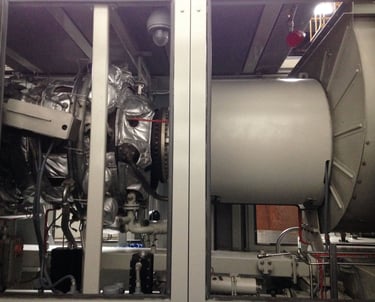

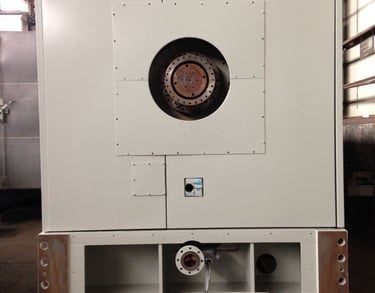

TWO (2) Solar MARS 100 Turbine Generator

Two (2) Core Solar Mars 90 Version T-MA-2.

SPECIFICATIONS

Generator Speed 3.600 RPM (60 Cycle)

- Generator Output Voltage 13.2 KV, 3 Phase

- Normal operation Exhaust Temperature 502 C, 935 F

- Maximum Operation Exhaust Temperature 538 C, 1000F

- Nominal Horse Power 9000HP

Total Package Weight With Accessories 44,000Lbs

The MARS package includes:

1- A MARS two-shafts industrial turbine engine

2- A speed reducing gear unit

3- A generator

4- A diesel engine start system

5- A package mounted gage panel and

6-A floor standing control consol, that contains the electrical controls devices and circuitry required for engine and generator operation and protection

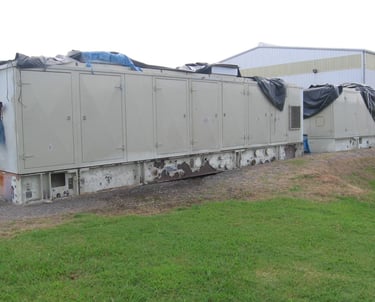

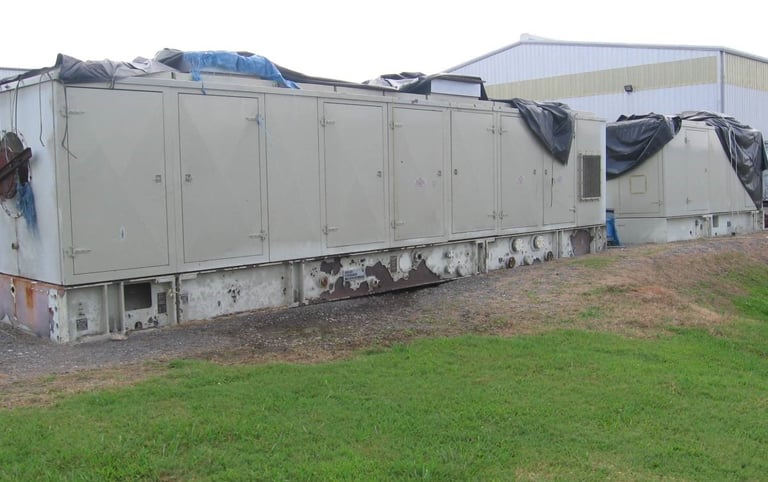

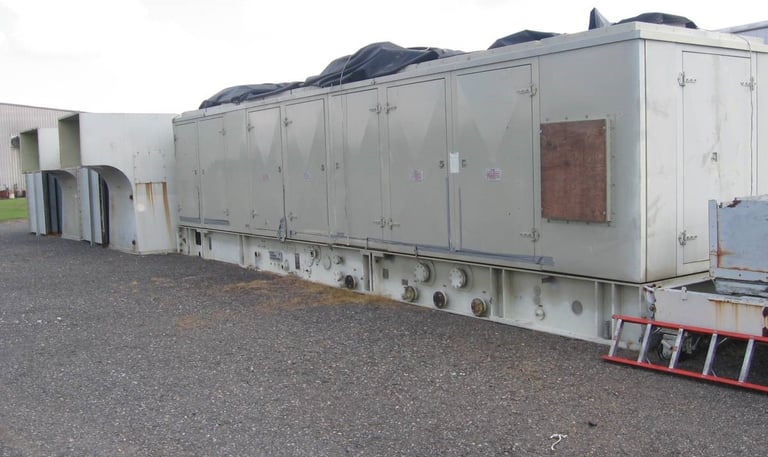

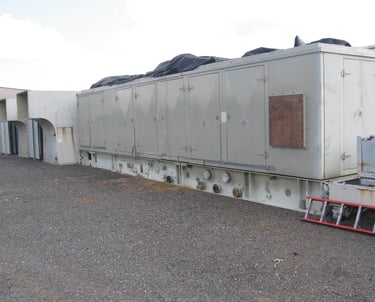

The two units were in service acting stand by, govt. facility until Dec 05, when they were decommissioned.

They are now removed and ready for shipment. Year of Manufacture is 1976.
