QUALITY USED, 342 MW, 13,800V. 60 HZ. HFO POWER PLANT

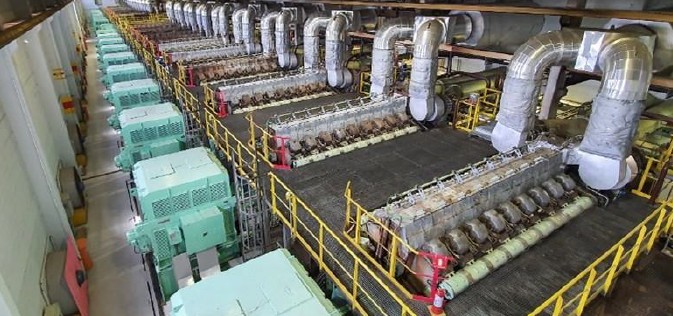

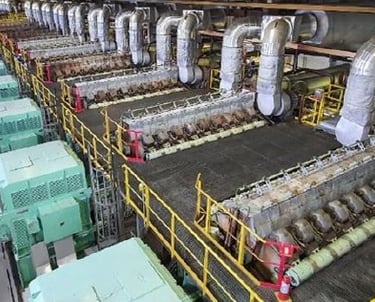

Complete Power Plant Quality Use, with Thirty Eight (38) MAN 18V32/40CD and two (2) MAN 9L32/40CD with HYUNDAI Generators

ENGINES:

▪ Manufacturer: MAN/STX, Type:18V32/40 CD, Output power: 9.037 kW, Number of cylinders: 18, Speed: 720 rpm

▪ Manufacturer: MAN/STX, Type:9L32/40 CD, Output power: 4.37 kW, Number of cylinders: 9, Speed: 720 rpm

Manufacturing Year: 2008, approximately 300 hours of use since the last overhaul

GENERATORS

▪ Manufacturer: HYUNDAI, Type: HSGD 1011K10, ▪ Output power: 10.954 kVA, Current: 458.3 A, Frequency: 60 Hz, Speed: 720 rpm

▪ Manufacturer: HYUNDAI, Type: HSR7 943 10P, Output power: 5.444 kVA, Current: 227.8 A, Frequency: 60 Hz, Speed: 720 rpm, Power factor: 0.8, Insulation class: F, Power factor: 0.8, Insulation class: F

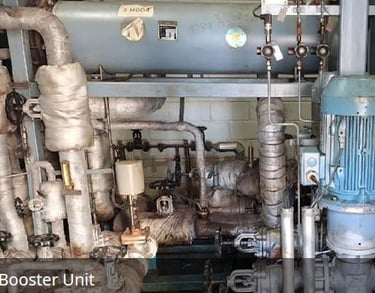

ENGINE SPECIFIC MODULES: • LO Separator, • Pure Vent, • Nozzle cooling, • Fuel oil unit

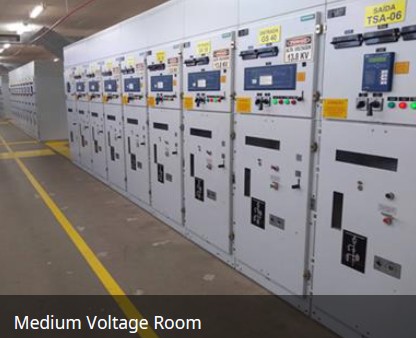

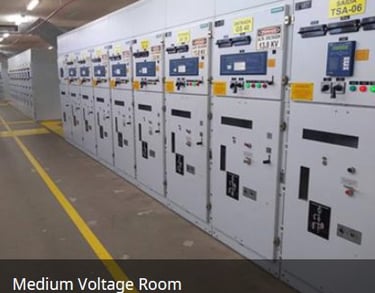

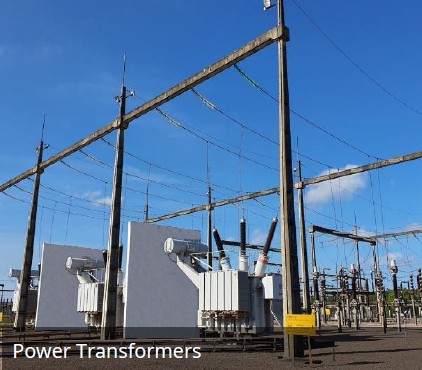

HIGH VOLTAGE ELECTRICAL SUBSTATION: • Power Transformers, • Disconnectors and Circuit Breakers, • Potential transformers, • Lightning rod, • Transmission towers

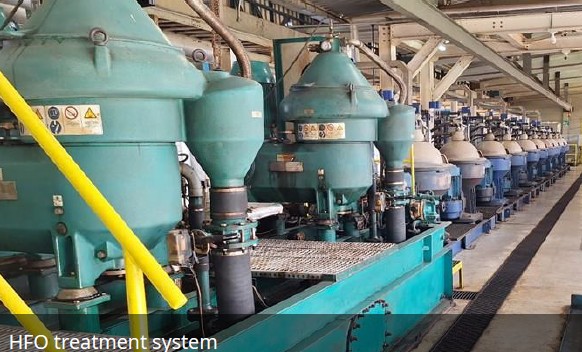

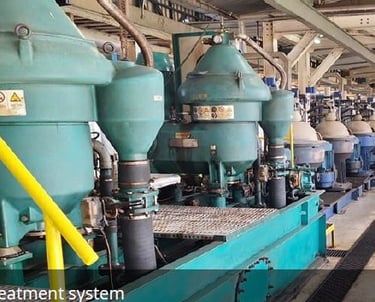

WASTE TREATMENT SYSTEM: HFO FUEL: • HFO pump, • HFO separator, • Automatic HFO filter, • HFO treatment system

Unit is now ready for shipment.
