NEW/Surplus MWN 3016 V 16, 800 kW, 400v. 50 Hz. CHP Enclosed Natural Gas Generator Set






Rating: 800kW, Electric Power: 800kWe Power factor (cos. phi): 1.0, 400 Volts, 3Ph, 50Hz, 1500 Rpm Altitude: max 1100m a.s.l., Ambient temperature: +5 up to +53 degC

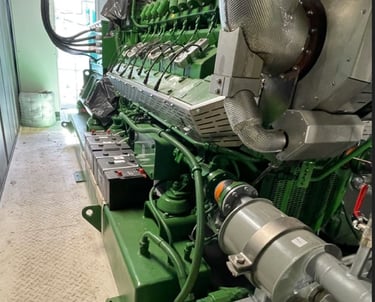

Engine: MWM 3016 V 16, 16 cylinders in V, water cooled, turbo charged with intercooler
Alternator: 800kW / 400V synchronous, 3 phases, brushless, self-exciting, self-regulating, air cross flow ventilated, protection mode IP23, engine flywheel and generator shaft coupled, engine and generator coupled over SAE flange and fixed to one unit, genset mounted with vibration dampers.

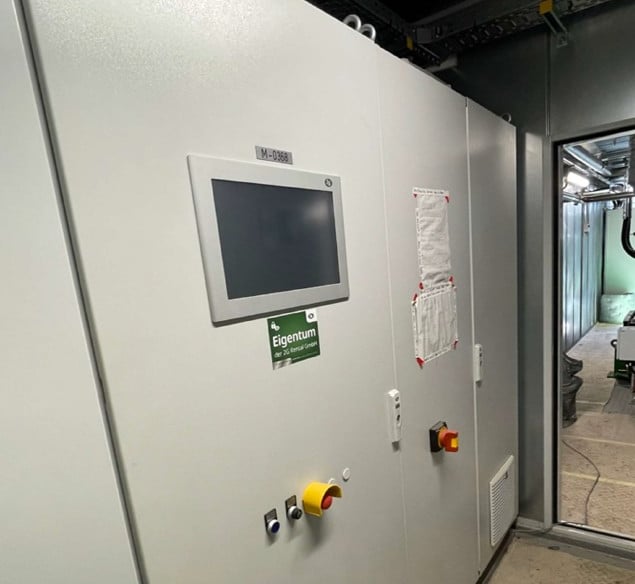

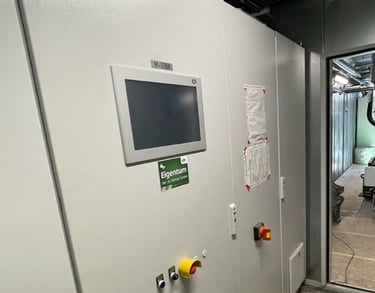

Control unit MMC consisting of: Electronic speed regulation for the engine, Cos. phi regulation for the engine, Complete engine monitoring and control, Complete generator monitoring, Display of all relevant data (voltage, frequency, power, temperatures, oil pressure, overload, power response, Regulation for constant genset power, or alternatively, regulation of genset power depending on effective usable power at point of net entrance, Observation device for the parallel mains operation, Alarm management, Monitoring for diagnostics of errors, Visual monitoring of the operational characteristics, Possibility for remote access, Auxiliary devices are not included in the scope of supply for example: Pumps, radiators, auxiliary drives supply cabinet, machine room ventilation system etc.

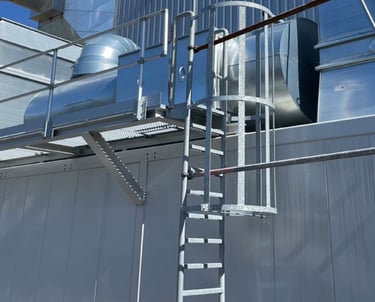

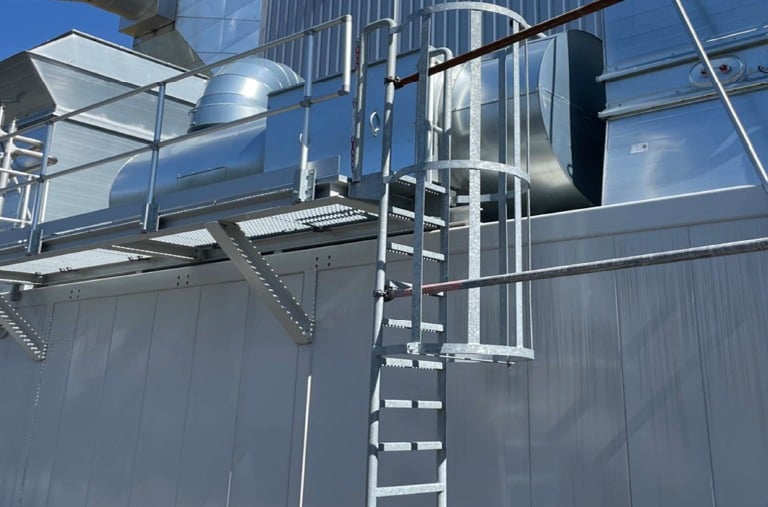

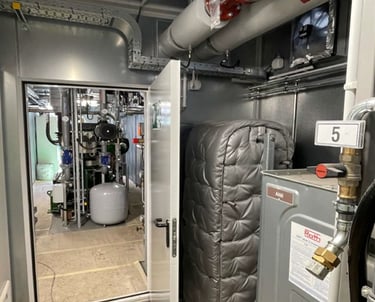

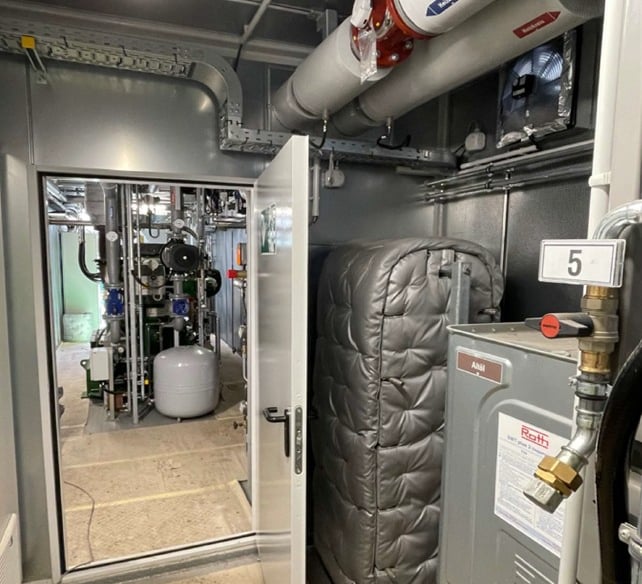

Heavy Duty Container 15x3x3m (50x10x10 ft) 65 dB(A) at 10 m (33 ft)
