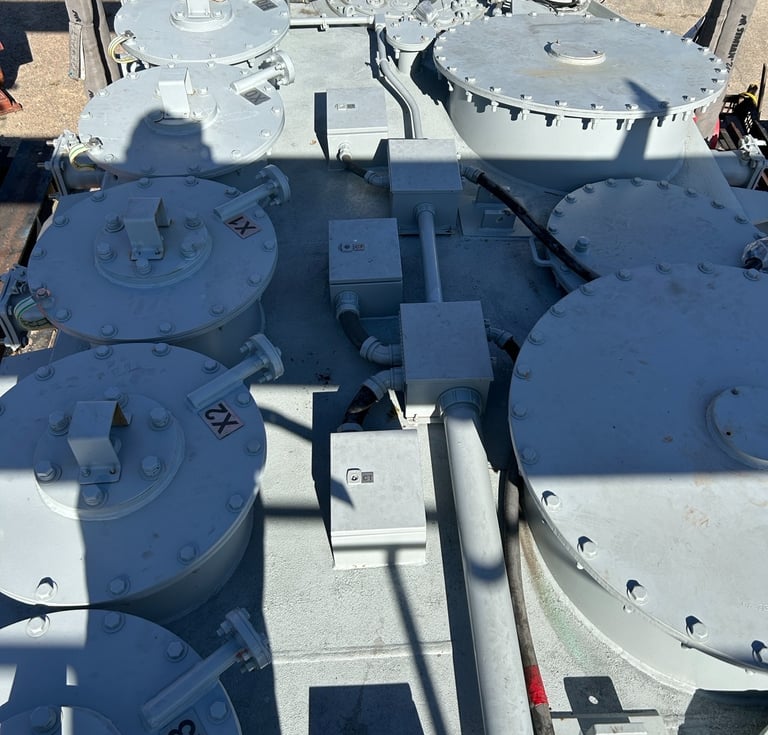

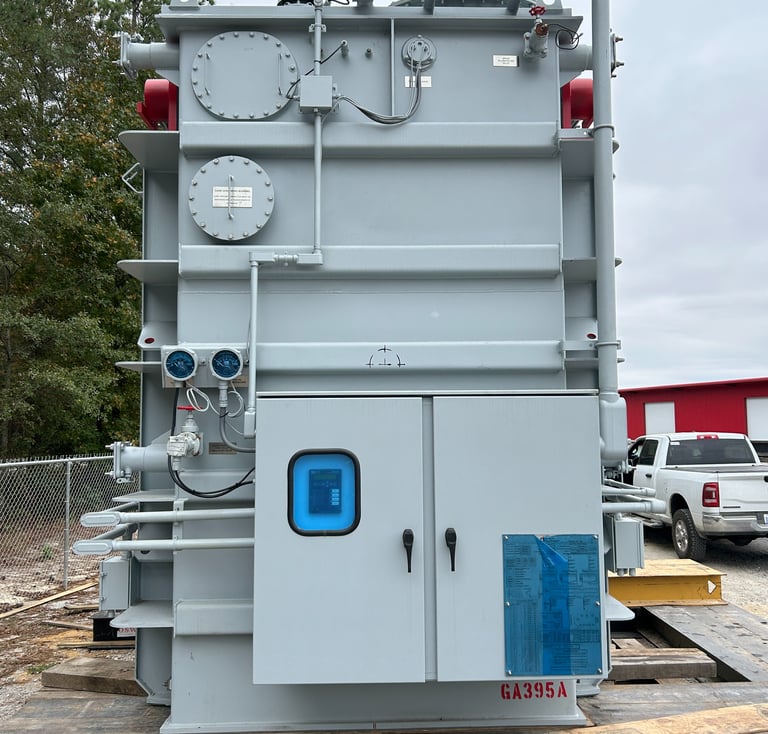

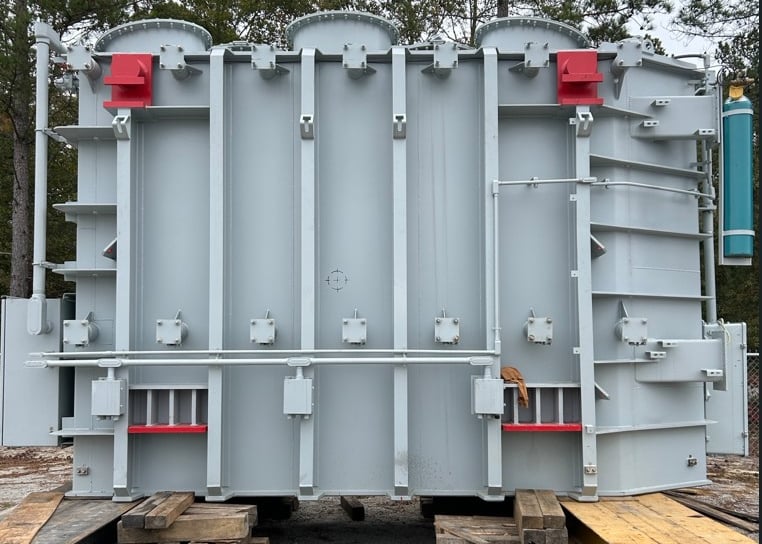

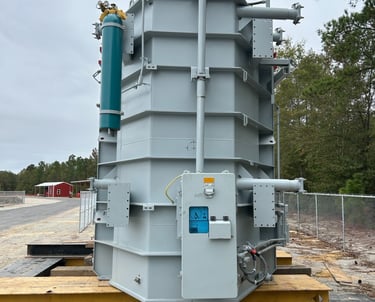

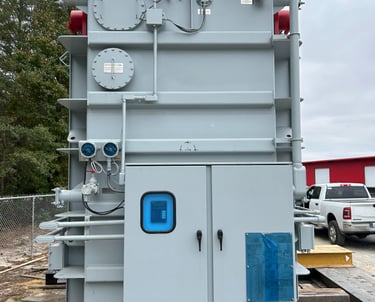

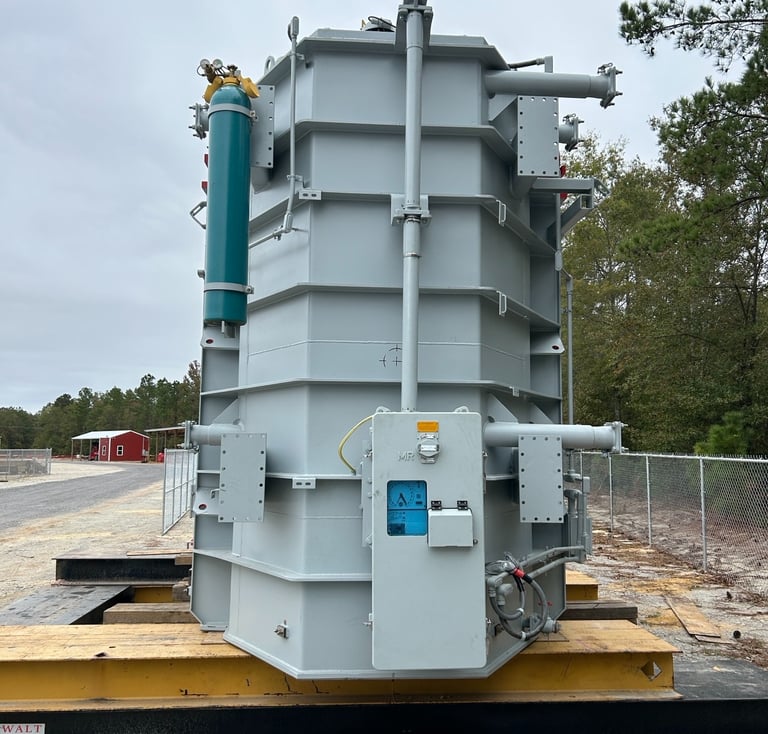

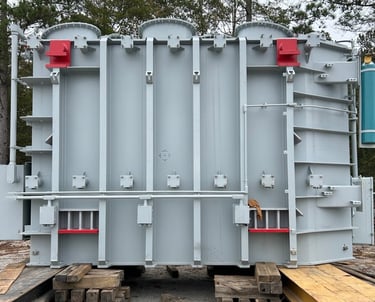

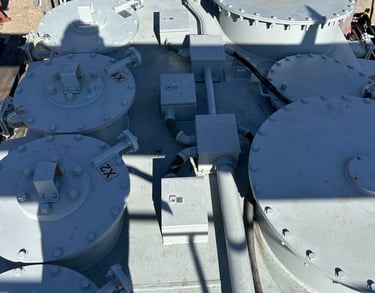

NEW Virginia Transformer 120 MVA Step-Up Transformer, 34.5kV Grounded Wye -> 230kV Grounded Wye

One (1) New, Substation Transformer 120 MVA, 230/34.5/13.8 kV. 60 Hz. 3 Phase

INSULATION LEVEL (BILL)

HV Line WDG / BUSHING: 750/900 KV

HV Neutral WDG / BUSHING: 200/200 KV

LV Line WDG / BUSHING: 200/250KV

LV Neutral WDG / BUSHING: 200/200KV

STANDARDS: IEEE C57.12.00 - 2015

Frequency: 60 Hz.

Vector Group: YNyn0+d1

Oil Preservation system: Conservator

Insulation Oil: Type II Mineral Oil

Rated voltage (volts): 230 000 GrdY/132 790 - 34 500 GrdY/19 919 -13 800D

Manufacturing Year: 2022

Warranty expiration Date: April, 2031
